ComboCare Professional E-Stim and Ultrasound Combo Device
THIS MACHINE IS FOR PROFESSIONALS ONLY (PHYSIOTHERAPIST, CHIROPRACTOR, RMT ONLY)
Shipping time 8 to 15 days from the order date
- Unit: 2 Years
- Applicator: 1 Year
- Accessories (Wires, Face Plate): 6 Months

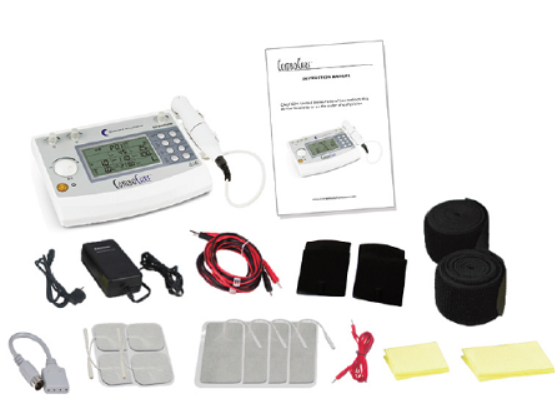

The ComboCare Ultrasound Combo E-Stim Unit comes with four (50 x 50 mm) adhesive electrodes, four (50 x100 mm) adhesive electrodes, two sets of rubber electrodes with sponges, two elastic straps, two sets of lead wires, AC adapter and power cord, electrical stimulation cable, electrode wire for ultrasound combination, 5 cm2 ultrasound head, transmission gel and operating manual.

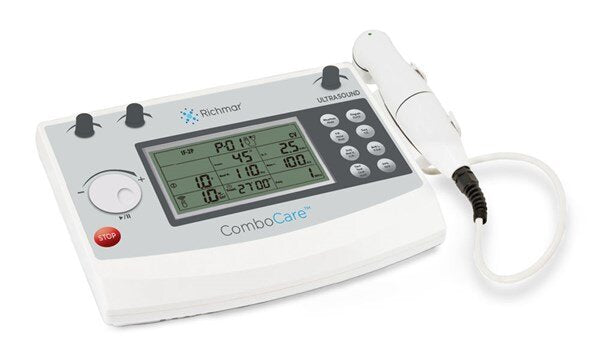

The microprocessor controlled ComboCare e-stim is a professional two-channel electrotherapy device that combines clinical ultrasound therapy with five treatment waveforms: IF 4-Pole, IF 2-Pole, Russian, EMS and TENS waveform. A dual frequency 5 cm2 sound head comes standard with the e-stim unit. Its portable design lets you take it to your patient or keep it at the clinic. It's easy to use and up and is running within minutes. And its advanced operating system ensures a complete range of therapy no matter where you use it! You can choose between several different amplitude modulation options.
General Unit Specifications:
Wavelength: IFC-4P, IFC-2P, TENS, EMS and Russian
Pulse Width: 30-40 µs
Frequency: 1 MHz and 3 MHz for ultrasound, 1-250 Hz for LF, beat frequency for IF: 1-150 Hz, carrier frequency for IF: 4KHz, carrier frequency for Russian: 2.5KHz
Power Supply: Adaptor, input 100-240V 50/60 Hz, output 15V/3A
Intensity: Max 3W/CM2 (pulse) for ultrasound, 0-50mA for IF (IKΩ), 0-100mA for LF (IKΩ)
Working Time: Max 60 minutes for IF, Max 30 minutes for ultrasound and combo
Dimensions: 9.8” x 7.3” x 3.2”
Weight: 5.5 lbs.
Working Environment: Temperature: 10°C – 40°C
Humidity: 30% RH to 85% RH
Atmospheric Pressure: 800hPa – 1060hPa
Temperature: 10°C – 55°C
Humidity: 20% RH to 85% RH
Atmospheric Pressure: 700hPa – 1060hPa
